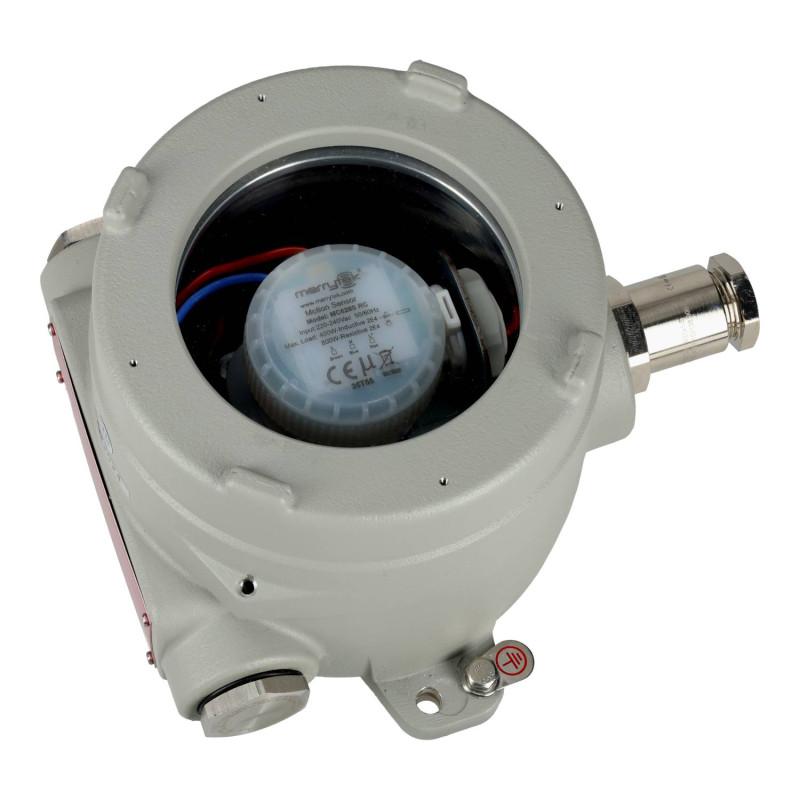

Industrial presence sensor made of aluminium and reinforced glass, for surface installation, with radar detection function. Ideal for automating the switching on of luminaires in areas at risk of explosion, thus achieving significant savings on electricity bills.
It has protection against atmospheres liable to cause explosions, certified under the European ATEX directive.
Its IP66 degree of protection allows it to be installed in damp areas.
It has three metric M25 x 1.5 threaded conduits (two of them closed with a hexagonal plug and the other with an ATEX M25 cable gland). For wiring, a 3-wire hose should be used, with the appropriate protection for the environment in which it is to be installed.
Ideal product for factories, warehouses, workshops, industrial buildings, boats, paint booths, petrol stations and areas with potentially explosive atmospheres in general.
Characteristics:
- Aluminium housing (with earth terminal) and reinforced glass screen.
- Painted by electrostatic spraying, with high anti-corrosion grade.
- Suitable for zones 1 and 2 (gases) + 21 and 22 (dust).
- Marking II 2G Ex db IIC T6 Gb
II 2D Ex tb IIIC T80℃ Db IP66/67
- Maximum mounting height: 12 metres
- Hermetically sealed by thread (fixed with M2 hex head captive screw).
- Supports resistive loads up to 800W and inductive (LED) loads up to 400W.
In addition to being a product with a life of more than 50,000 hours, it comes with a 5-year guarantee. It also has the CE certificate, which certifies that it complies with EU requirements regarding electromagnetic compatibility and low voltage regulations. This certificate declares the conformity of the product with all legal requirements and ensures the validity of the product to be sold throughout the European Economic Area.
Surface mounting screws are not included.
