Ref. EML5EX

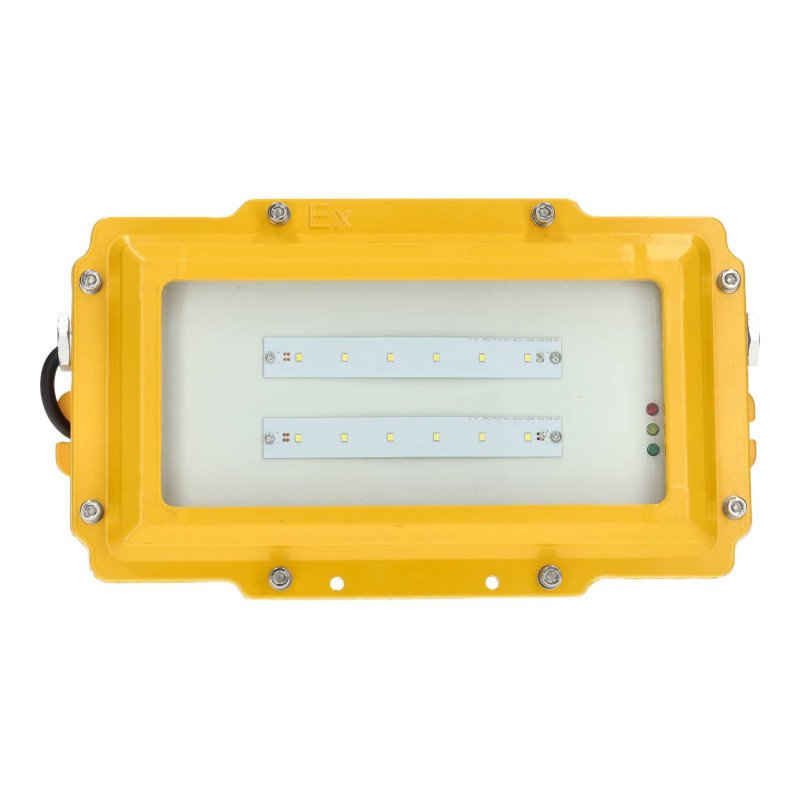

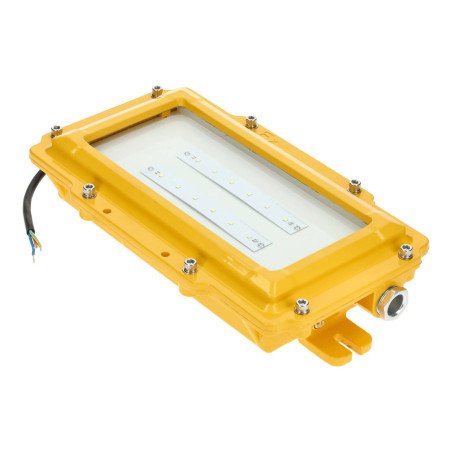

ATEX 3W IP65 Maintained LED Emergency Light

€244.75
Tax included · Envío gratis
3W
200
120
180-240V
Color temperature
En Stock
Quantity
Entrega 24h Península Pide antes de las 16:30h. Envío gratuito a partir de 29,90€ incluido.
5 años de garantía
Envío gratis +29€
Devolución 30 días
Pago seguro

También te puede gustar

Clasificación energética

Eficiencia energética normativa 2023. EPREL

Descargas

Medidas

Medidas

Ficha técnica

Size 352 x 200 x 70mm
Power 3W
Lumen 200
Color temperature Cool white 6500k
Beam angle 120
Power factor 0.95
Led type SMD
VIN 180-240V
Frequency (HZ) 50/60 hz
Material Aluminium + tempered glass
Dimmable No
IP grade IP65
Working temperature -20º / +40º
Certifications CE, RoHS, ATEX
Warranty 5 years
ATEX Mark II 2GD Ex d e IIC T6 Gb, DIP A21 TA,T6 IP65

Detalles del producto

The ATEX 3W IP65 Maintained LED Emergency Light is designed to provide safe and continuous lighting in industrial environments with an explosion risk due to the presence of flammable gases or combustible dust. It complies with ATEX, CE, and RoHS regulations, allowing its use in classified zones 1, 2, 21, and 22, ensuring reliable operation in potentially hazardous atmospheres.

Maintained Emergency Function

This luminaire incorporates an internal backup battery that ensures automatic ignition in the event of a power failure, maintaining lighting for up to 2 hours in emergency mode. This function is essential for improving safety, facilitating evacuation, and ensuring visibility in critical situations.

LED Technology and Luminous Performance

Equipped with SMD LED technology, it offers a power of 3W and a luminous flux of 200 lumens. It emits cool white light (6500K) with a 120º beam angle, providing wide and homogeneous lighting. Its power factor of 0.95 guarantees high energy efficiency and optimized consumption.

Design, Materials, and Installation

Made of aluminum, the luminaire offers high mechanical resistance and long durability. It has an IP65 protection rating, making it suitable for both indoor and outdoor installation, even in environments with dust and humidity.

Designed for surface installation, it can be mounted directly on walls or ceilings. The power cable is not included and must be suitable for the specific installation atmosphere, with a minimum diameter of 7 mm, compatible with the equipment's cable gland. It operates correctly in a temperature range of -20 ºC to +40 ºC.

Lifespan and Warranty

Thanks to its design and the quality of its components, it offers a lifespan of up to 50,000 hours. The product has a 5-year warranty, supporting its reliability and performance in demanding industrial applications.
