3YEARS WARRANTY

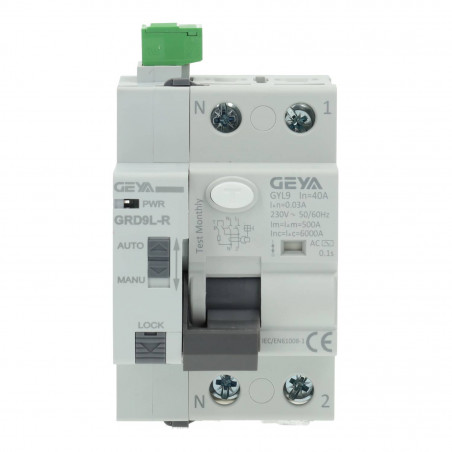

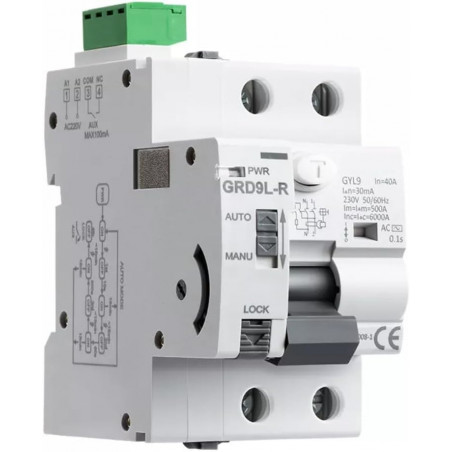

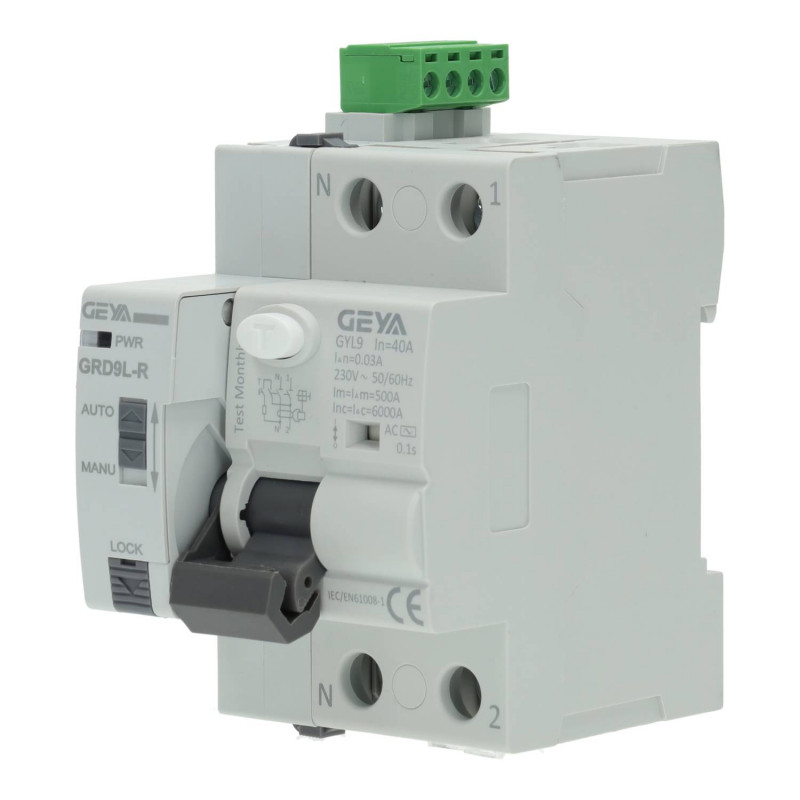

Residual current circuit breaker with auto reclosing 2P 6kA 30mA

IDR24030
€60.98 Tax included
VIN AC 220-240V
IP grade IP20
Indoor / outdoor Interior
Más datos técnicos+ Datos
Intensity
En Stock
Quantity

Descuentos especiales para el profesional

  • Descuento directo sobre la tarifa PVP
  • Descuentos por volumen
  • Presupuestos garantizados 60 días
  • Asistencia técnica telefónica
¡REGÍSTRATE!
  • Safe purchase through secured payment gateway Safe purchase through secured payment gateway
  • 24/48h shipping mainland Spain 24/48h shipping mainland Spain
  • Return period 15 days Return period 15 days
  • Up to 5-year warranty Up to 5-year warranty

You might also like

Download

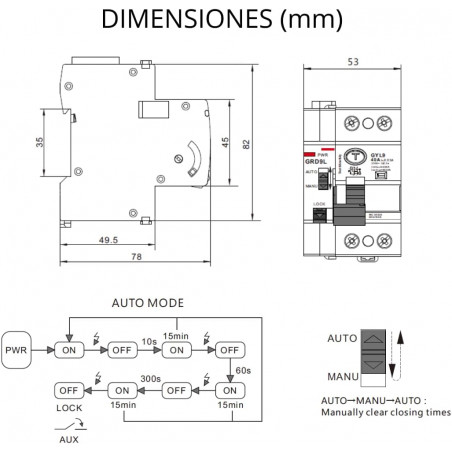

Medidas

Medidas

Ficha técnica

  • Indoor / outdoorInterior
  • VINAC 220-240V
  • Frequency (HZ)50/60 hz
  • IP gradeIP20
  • Working temperature-10º / +50º
  • CertificationsCE, RoHS, IEC60898-1
  • Warranty3 years

Detalles del producto

Single-phase residual current circuit breaker with automatic reset.

In AUTO mode, this device allows the voltage to be automatically reconnected after tripping. It has 3 preset resets in 10, 60 and 300 seconds respectively. If the circuit breaker is tripped a fourth time in less than 15 minutes, it will be blocked until it is manually re-armed. It also has a manual mode in which automatic rearming is disabled.

It effectively protects the installation from earth shunts and people from direct or indirect contact.

Specifications:

- No. of poles: 2

- Rated current: 40A

- Breaking capacity: 6 kA

- Sensitivity: 30mA

- Max. conductor cross-section: 25mm²

- MANUAL/AUTO mode selector

- LED status indicator
