Ref. CI6N200F

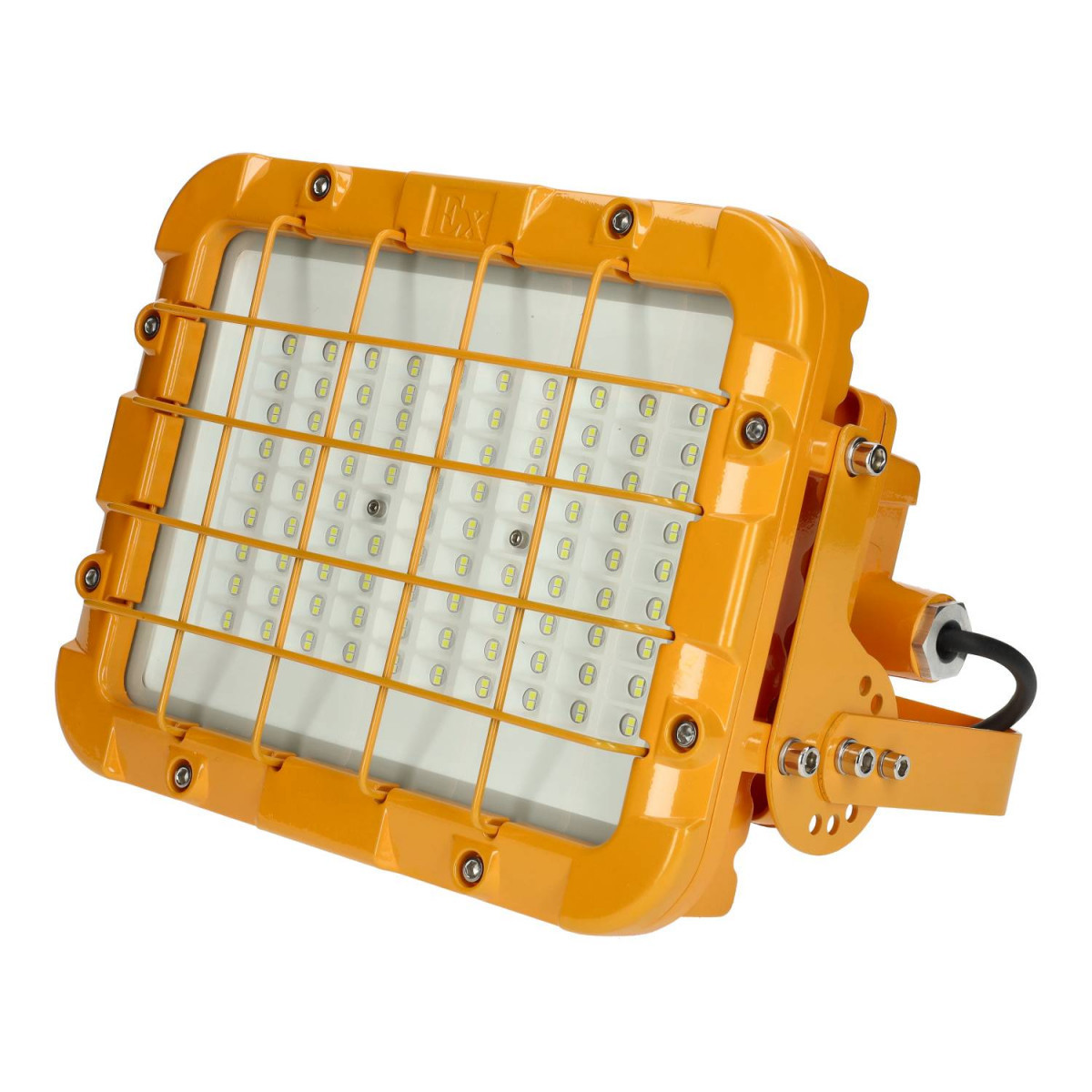

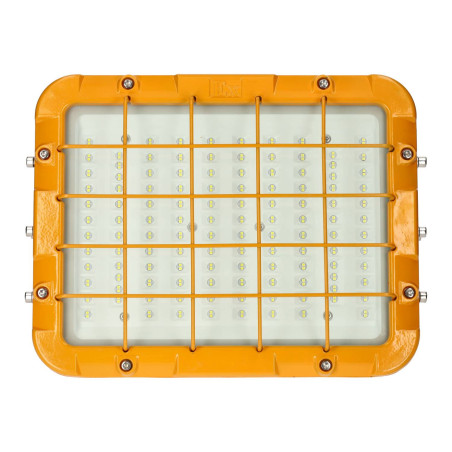

ATEX LED Flood light 200W 120° IP66 Lumileds Mean Well
€547.45
Tax included
·
Power
200W
Lumen
22000
Beam angle
120
VIN
85 - 265V
Comprados juntos habitualmente
Documentos

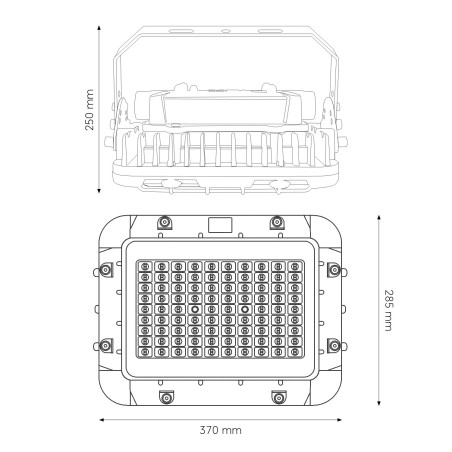

Medidas
Ficha técnica
Size
370 x 300 x 250 mm
Power
200W
Lumen
22000
Color temperature
Cool white 6000k
Descripción
The ATEX LED Flood light 200W is designed for installation in industrial environments with explosion risk due to the presence of flammable gases or combustible dust. Designed to illuminate large ATEX areas and high-demand lighting environments, it complies with ATEX Directive 2014/34/EU, ensuring safe operation in classified zones 1, 2, 21, and 22.
This model incorporates high-performance Lumileds 3030 LED chips and a Mean Well driver, delivering extremely powerful, stable, and efficient lighting even in large industrial environments and harsh conditions.
High luminous performance and industrial reliability
With a power output of 200W, this floodlight provides a high luminous flux, making it ideal for uniform illumination of large surfaces and high-mount installations. Its lifespan of up to 50,000 hours significantly reduces maintenance and replacement costs in large-scale industrial facilities.
Designed for extreme conditions
The floodlight features an IP66 protection rating, making it resistant to dust and water, along with IK10 impact resistance, suitable for indoor and outdoor use in severe environmental conditions. It operates reliably within a temperature range of -20°C to +40°C.
Its housing is made of aluminum with WF2 anti-corrosion treatment, ensuring maximum durability and resistance in aggressive industrial and exposed outdoor environments.
Installation and technical considerations
It includes a reinforced adjustable bracket, allowing installation on walls, ceilings, or poles, especially suitable for high-mount installations and large industrial areas.
The power cable is not included. A cable suitable for the specific ATEX atmosphere where it is installed must be used, with a minimum diameter of 7 mm, compatible with the luminaire’s cable gland.

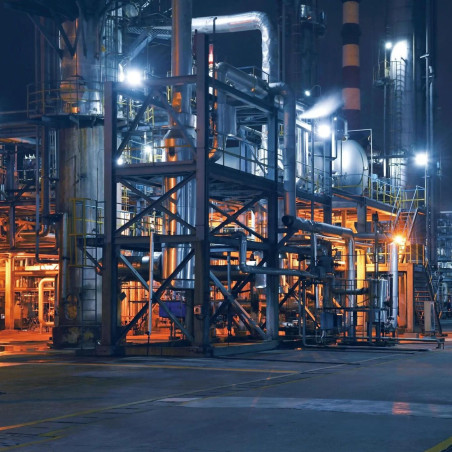

Recommended applications
The Explosion proof LED Flood Light 200W is ideal for the following environments::
- Large industrial and petrochemical plants
- Refineries, ports, and ATEX outdoor areas
- High-bay industrial warehouses
- Large production and storage areas
- Industrial facilities requiring maximum lighting coverage
Recommended installation height: 8 to 12 meters.
