Ref. CI6N100F

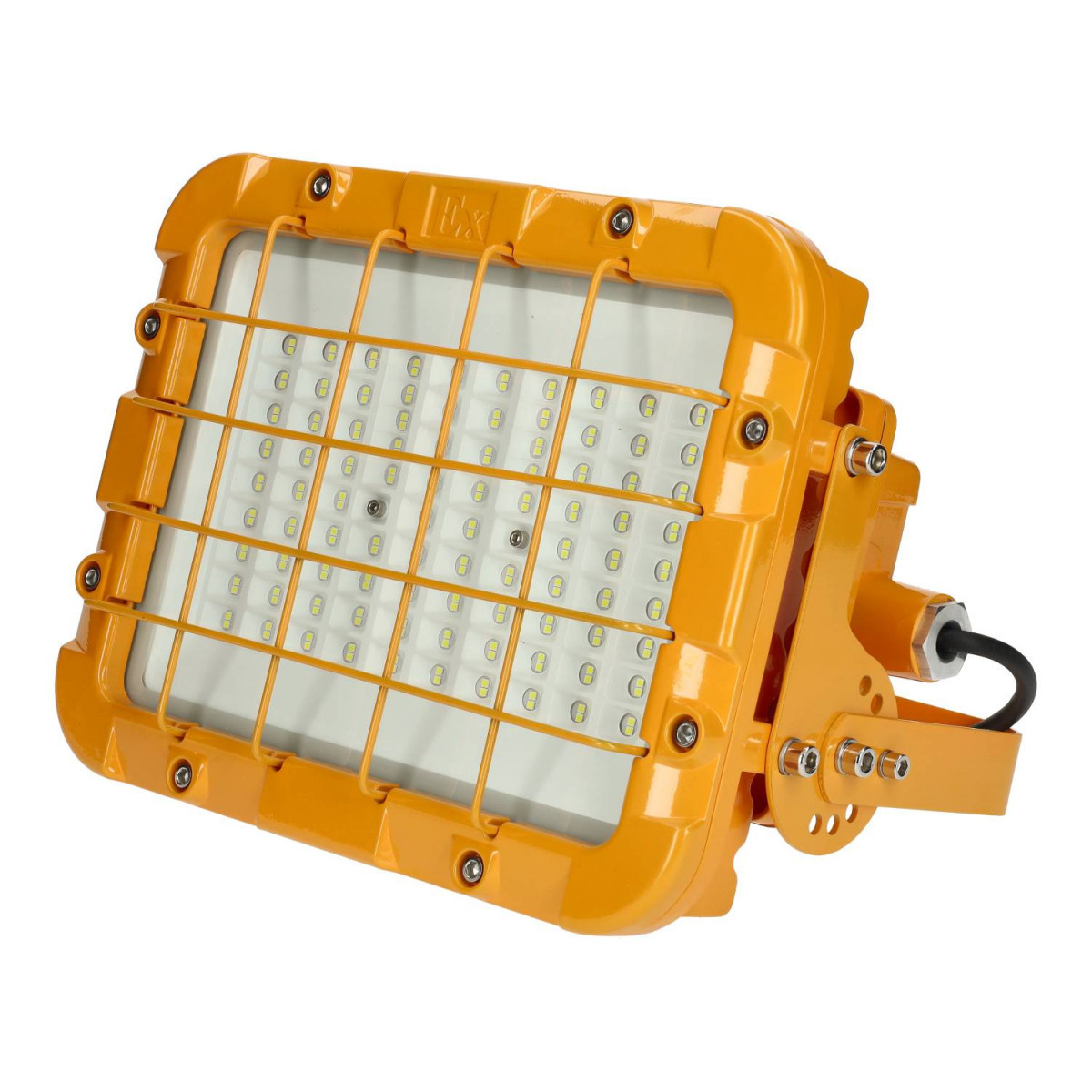

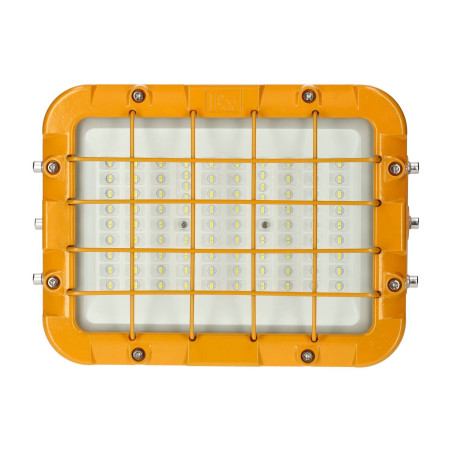

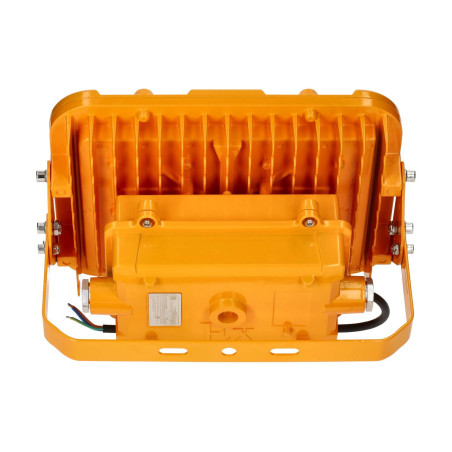

ATEX LED Flood light 100W 120° IP66 Lumileds Mean Well
€426.25
Tax included
·
Power
100
Lumen
11000
Beam angle
120
VIN
85 - 265V
Comprados juntos habitualmente
Documentos

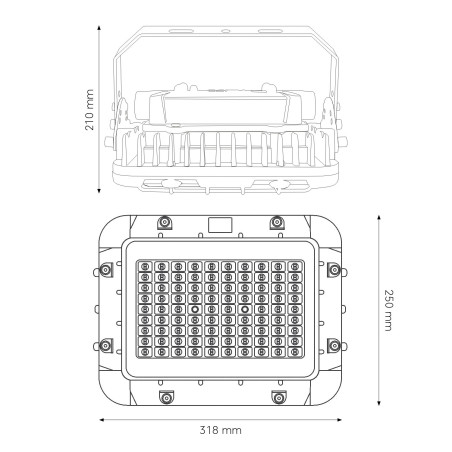

Medidas
Ficha técnica
Size
318 x 210 x 250 mm
Power
100
Lumen
11000
Color temperature
Cool white 6000k
Descripción
The 100W ATEX LED Flood light is designed for installation in industrial environments with explosion risk due to flammable gases or combustible dust. It complies with the ATEX Directive 2014/34/EU, ensuring safe operation in zones 1, 2, 21, and 22.
This model features high-performance Lumileds 3030 LED chips and a Mean Well driver, providing stable, efficient, and reliable lighting even in demanding industrial conditions.
High luminous performance and industrial reliability
With a power of 100W, this floodlight delivers a luminous flux of 11,000 lumens, ensuring powerful and uniform illumination. Its lifespan of up to 50,000 hours significantly reduces maintenance and replacement costs.
Designed for extreme conditions
The floodlight has an IP66 protection rating, making it resistant to dust and water, and IK10 impact protection, suitable for indoor and outdoor use. It operates correctly in a temperature range of -20 °C to +40 °C.
Its housing is made of aluminum with WF2 anti-corrosion treatment, ensuring maximum durability in harsh industrial environments.
Installation and technical considerations
Includes an adjustable bracket, allowing installation on walls, ceilings, or poles according to project requirements.
The power cable is not included. It is necessary to use a cable suitable for the specific ATEX atmosphere where it will be installed, with a minimum diameter of 7 mm, compatible with the luminaire’s cable gland.

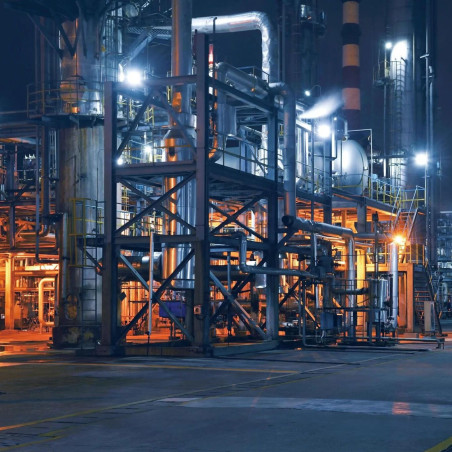

Recommended application areas
The Explosion proof LED Flood Light 100W is ideal for the following environments::
- Chemical or pharmaceutical plants
- Gas stations and fuel depots
- Silos and grain warehouses with combustible dust
- Workshops or industrial areas with flammable vapors
- Loading and unloading areas of hazardous materials
Recommended installation height: 4 to 6 meters.
