Ref. CI11EX100F
ATEX UFO LED High Bay 100W 120˚ IP66 Lumileds Mean Well
€426.25
Tax included
·
Power
100
Lumen
11000
Beam angle
120
VIN
85 - 265V
Comprados juntos habitualmente
Documentos

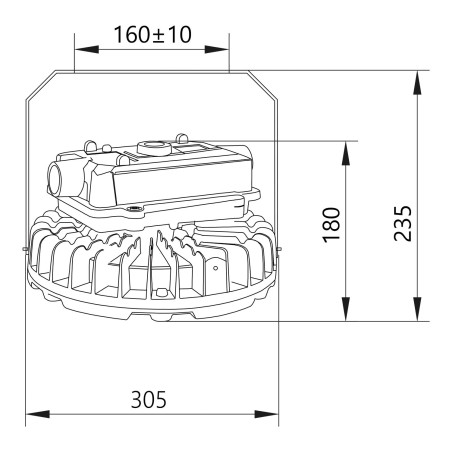

Medidas
Ficha técnica
Size
Ø 240 x 235 mm
Power
100
Lumen
11000
Color temperature
Cool white 6000k
Descripción
The 100W ATEX UFO LED High Bay is the power standard for heavy industry and environments with explosion risks. Certified under Directive 2014/34/EU, it offers total safety in zones classified as 1, 2, 21, and 22, allowing efficient operation in the presence of flammable gases and combustible dust.
This model perfectly balances power and consumption, using Lumileds 3030 LED chips and a high-stability Mean Well driver, leading components that ensure reliable lighting against the demands of continuous work.
High Luminous Performance and Industrial Reliability
With a power of 100W, this projector generates a luminous flux of 13,000 lumens. Its 120° optics are optimized for installation heights between 5 and 7 meters, providing the necessary light intensity for medium-sized industrial buildings where visual safety is paramount.
Designed for Extreme Conditions
It features IP66 and IK10 protection ratings, withstanding environments with humidity, fine dust, and impacts. Its Ø 300 x 235 mm aluminum housing has a WF2 anti-corrosion treatment, ideal for chemical plants or saline environments, operating flawlessly between -20 °C and +40 °C.
Installation and Technical Considerations
The unit incorporates a high-resistance adjustable bracket for versatile ceiling mounting. To maintain the integrity of the ATEX certification, the power cable (not included) must have a minimum diameter of 7 mm to ensure the airtight seal of the cable gland.

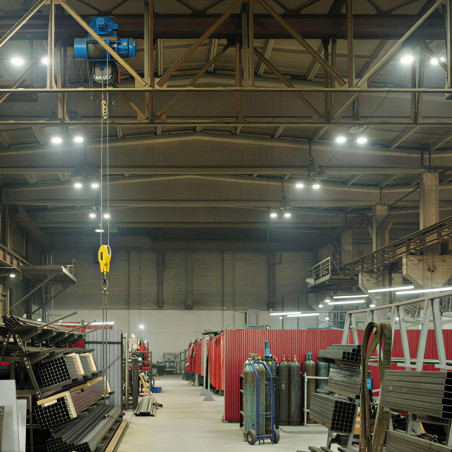

What type of spaces is the 100W ATEX High Bay recommended for?
It is ideal for industrial areas with standard height ceilings such as:
Chemical and petrochemical processing plants.
Logistics warehouses for flammable products.
Service stations and fuel supply areas.
Industrial workshops and production plants.
This model is part of our ATEX LED projector range, also available in 200W.
